Cross conveyor

Cross Conveyor

Cross conveyor

Cross Conveyor
Cross Conveyor
Cross conveyor

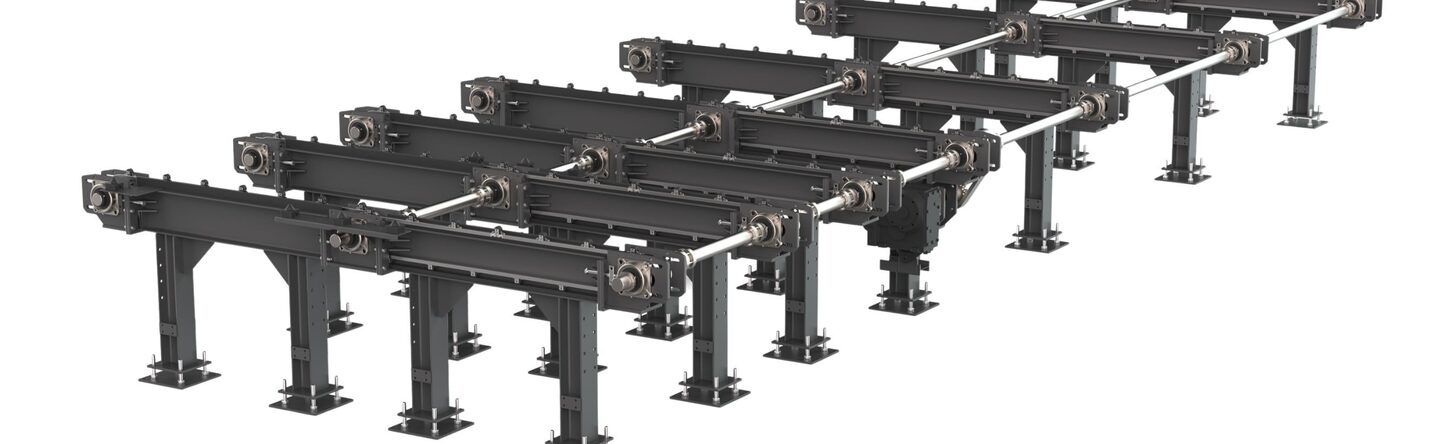

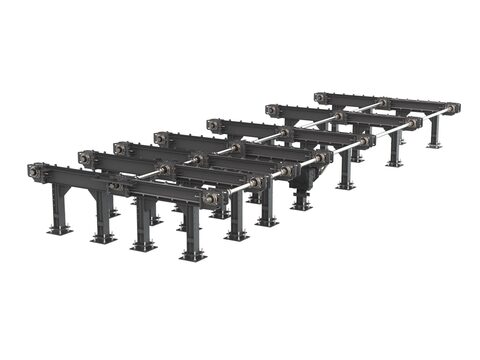

The cross conveyor handles the lateral transport of pipes for example, from one roller conveyor line to the next. It
​can operate in both forward and reverse directions, making it equally suitable for buffering and return processes.
​Thanks to its modular design, the cross conveyor can be built in different lengths and widths, tailored to the number of
​pipes, their diameters, and the distance to be bridged within the facility layout.

Other Machine Series

Beaver 3 S MAN

Beaver S Series

  • Operates with form tools
  • Machining range: 0,25" to 56"
  • Wall Thickness: Up to 25mm in one pass
Beaver 16 CNC

Beaver CNC Series

  • Single point machining
  • Machining range: 1" to 56"
  • Wall Thickness: Unlimited
Beaver 16 CB

Beaver CB Series

  • Single point machining
  • Machining range: 1" to 56"
  • Wall Thickness: Unlimited
Pipe chamfering, boring, turning, facing, thread cutting, deburring and cut grooving machine

RTL ZX

  • Single point machining
  • Single or double-sided end working up to OD 323 mm

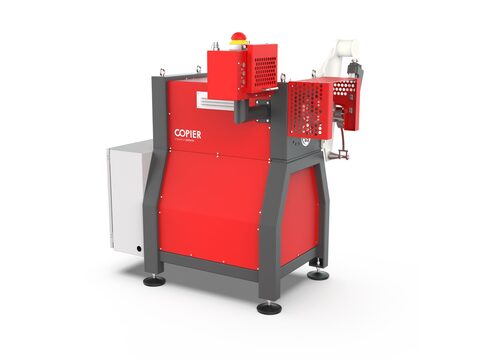

Copier_GM-3

Groove Master

  • Machining Range: 3/4" - 24"
  • Wall Thickness: up to 8 mm in one pass
Design ohne Titel

Millina

  • ​Pipe lengths 0.6 - 15m
  • Pipe diameters 31.6 - 500mm
  • Pipe weight max. 1t/m
  • Fittings 1"-24"
Loading Table

Loading Table

  • ​Pipe lengths 2 - 15m
  • Pipe diameters 25 - 500mm
  • Pipe weight max. 600kg/m
  • Loading capacity max. 25t
Design ohne Titel (1)

Storage Tower

  • ​Pipe lengths max. 13m
  • Pipe diameters 25 - 500mm
  • Pipe weight max. 1000kg/m
  • Total empty weight 80t
Design ohne Titel (3)

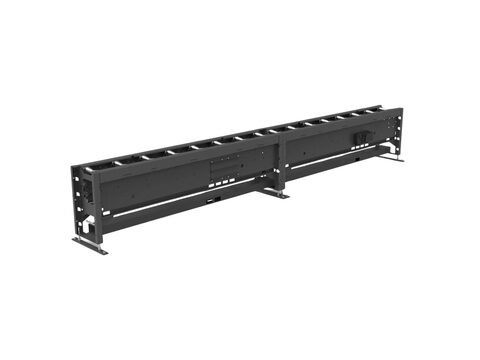

Roller Conveyor - heavy version

  • ​Pipe lengths 0.8 - 15m
  • Pipe diameters 25 -500m (expandable)
  • Loading capacity max. 1000kg/m
  • Transport speed 0.01 - 0.5m/s

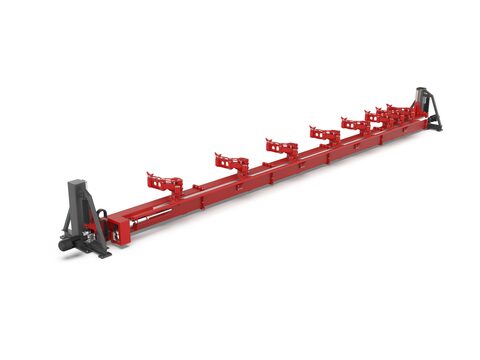

Transfer Module

Transfer Module

  • Pipe lengths 2 - 15m
  • Pipe diameters 25 - 500m
  • Pipe weight max. 1000kg/m

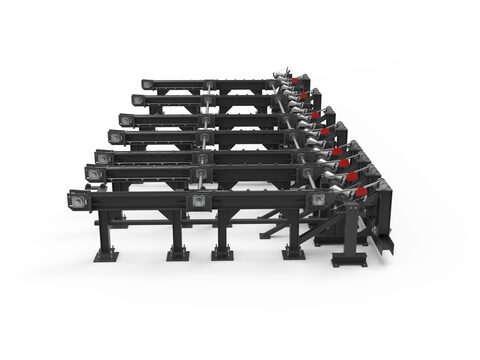

Softdrop Transfer

Softdrop Transfer

  • Pipe lengths 2 - 15m
  • Pipe diameters 25 - 500m (expandable)
  • Pipe weight max. 1000kg/m

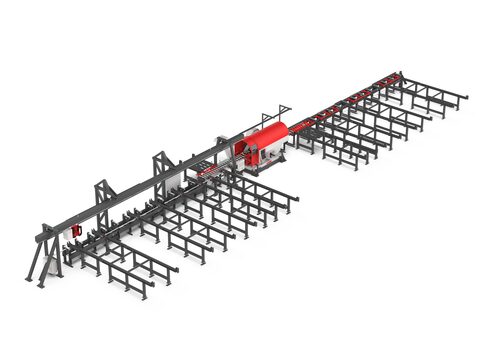

Cut & Bevel Cell

Cut & Bevel Cell

  • Pipe lengths up to 15m
  • Pipe diameters 25 - 500m
  • Pipe weight max. 200kg/m
  • Loading capacity max. 2t

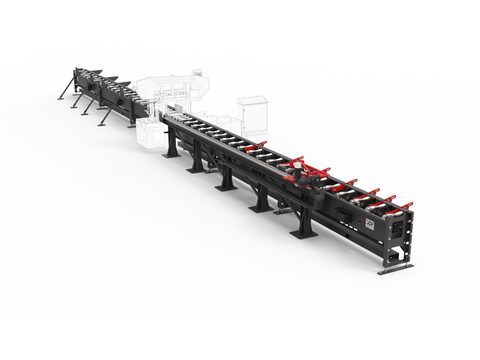

SAW STOP

Saw Stop

  • Pipe lengths 0.8 - 6.1m
  • Pipe diameters 31.6 - 500m
  • Pipe weight max. 200kg/m
  • Loading capacity max. 2t

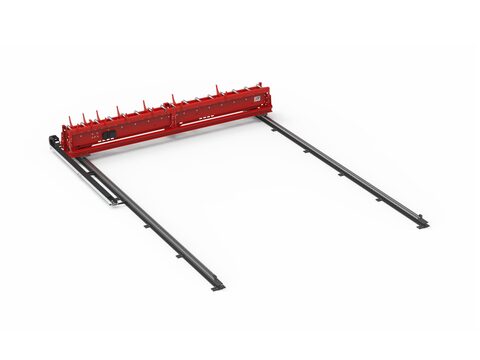

Shuttle

Shuttle

  • Pipe lengths 0.8 - 15m
  • Pipe diameters 25 - 500m
  • Pipe weight max. 200kg/m
  • Loading capacity max. 2t

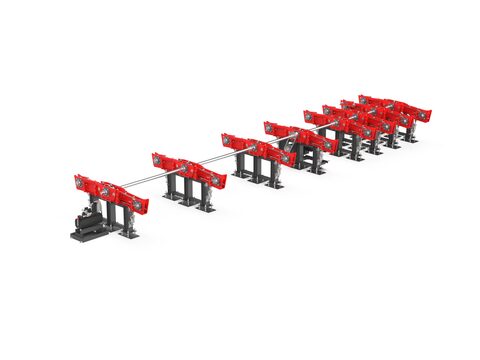

Lowerable Cross Conveyor

Lowerable Cross Conveyor

  • Pipe lengths 0.8 - 15m
  • Pipe diameters 25 - 500m
  • Pipe weight max. 600kg/m
  • Loading capacity max. 25t
Millina twin

Millina twin

  • Rohrlängen: 0,8 - 15 m
  • Rohrdurchmesser: 25 - 500 mm
  • Rohrgewicht: max. 200 kg/m
